Pell Hydrasher Model P-1125
Pell Hydrashear logo

Pell Hydrashear Modle W075
Model P-1125
1-1/8" Cable Capacity

$ 1,722.00
Add To Cart


Pell Hydrashear offers a large variety of replacement parts for each model of manual hydraulic wire rope cutters.  In addition, Pell Hydrashear offers the optional Overhaul Kit which maintains your cutter in top working condition .Replacement parts can be purchased separately.  Parts in the Overhaul Kit are only offered by the manufacturer in a complete kit form.  For current parts prices use the "Order by Fax" link or Contact Us by phone or e-mail.  Repair Overhaul Kit Below.

Export Data: The Schedule B code is 8462.39.0020, ECCN EAR99.



Pell Hydrashear Model P Replacement Parts

Minimum Internet Order $135

Model P
Description
Price
Buy Now
P-1125
Pell Hydrashear Model P Cutter
$ 1648.00
Add To Cart
P-62
Overhaul Repair Kit
$ 461.00
P-1
 Die Set (image)
$ 132.00
Add To Cart
P-4
 Blade (image)
$ 73.00
Add To Cart
P-5
 Blade Pin
$ 6.00
Add To Cart
P-6
 Hinge Pin #39 (image)
$ 43.00
Add To Cart
P-7
 Ram
$ 146.00
Add To Cart
P-8
 Ram Collar
$ 98.00
Add To Cart
P-10
 Ram Retracting Spring
$ 46.00
Add To Cart
P-11
 Cover Plate
$ 49.00
Add To Cart
P-15
Ram Cup Retainer image
$ 28.00
Add To Cart
P-33
 Latch image
$ 84.00
Add To Cart
P-36
 Pump Handle
$ 88.00
Add To Cart
P-38
 Latch Pin #39
$ 41.00
Add To Cart
P-43
 Shear Blade Holder
$ 306.00
Add To Cart
P-60
 Bypass Valve
$ 52.00
Add To Cart

Pell Hydrashear P-62 Overhaul Kit  $ 461.00  Add To Cart

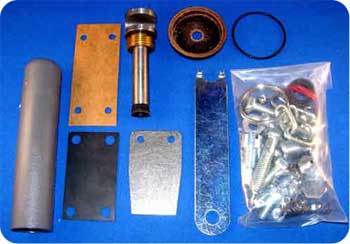

(Click here for sample contents in plastic bag
Pell Hydrashear Overhaul Kit
Overhaul Kit includes
P-12
Cover Plate Screws (3)
P-23
Suction Valve Gasket
P-35
Ram Collar Screws
P-13
Ram Retainer Screw
P-24
Suction Valve Plug
P-37
Bail
P-14
Ram Cup Leather & O-Ring
P-25
Plunger Packing Screw
P-39
Snap Rings (4)
P-16
Check Valve Plug
P-26
Plunger End Packing
P-40
Guard Screws
P-17
Check Valve Gasket
P-27
Plunger
P-42
Guard Plate
P-18
Check Valve Spring
P-28
Plunger Packing Set
P-44
Cover Gasket
P-19
Ball Check Valve
P-30
Handle Hinge Bolt
P-46
Lock Nut
P-20
Packing Nut
P-31
Release Valve Retainer
P-47
Packing Nut Wrench
P-21
Ball Suction Valve
P-32
Release Valve
P-50
Air Vent Valve
P-22
Suction Valve Spring
P-34
Handle Grip


Items P-12 Through P-50 are available separately in 10 packs quantities
Refer to Price List Below to Purchase
Model P
Description
Price 10 Pack
Buy Now
P-12
Cover Plate Screws (3)
$ 38.00
Add To Cart
P-13
Ram Retainer Screw
$ 38.00
Add To Cart
P-14
Ram Cup and O-Ring
$ 365.00
Add To Cart
P-16
Check Valve Plug
$ 130.00
Add To Cart
P-17
Check Valve Gasket
$ 38.00
Add To Cart
P-18
Check Valve Spring
$ 38.00
Add To Cart
P-19
Ball Check Valve
$ 38.00
Add To Cart
P-20
Packing Nut
$ 219.00
Add To Cart
P-21
Ball Suction Valve
$ 38.00
Add To Cart
P-22
Suction Valve Spring
$ 38.00
Add To Cart
P-23
Suction Valve Gasket
$ 38.00
Add To Cart
P-24
Suction Valve Plug
$ 102.00
Add To Cart
P-25
Plunger Packing Screw
$ 38.00
Add To Cart
P-26
Plunger End Packing
$ 109.00
Add To Cart
P-27
Plunger
$ 394.00
Add To Cart
P-27A
Plunger Assy, 20, 25-28
$ 854.00
Add To Cart
P-28
Plunger Packing Set
$ 255.00
Add To Cart
P-30
Handle Hinge Bolt
$ 38.00
Add To Cart
P-31
Release Valve Retainer
$ 175.00
Add To Cart
P-32
Release Valve
$ 38.00
Add To Cart
P-34
Handling Grip
$ 86.00
Add To Cart
P-35
Ram Collar Screws (3)
$ 22.00
Add To Cart
P-37
Ball
$ 118.00
Add To Cart
P-39
Snap Rings (4)
$ 38.00
Add To Cart
P-40
Guard Screws (2)
$ 38.00
Add To Cart
P-42
Guard Plate
$ 97.00
Add To Cart
P-44
Cover Gasket
$ 72.00
Add To Cart
P-46
Lock Nut
$ 78.00
Add To Cart
P-47
Packing Nut Wrench
$ 175.00
Add To Cart
P-50
Air Vent Valve
$ 226.00
Add To Cart
