Gunnebo Johnson Swivels are
by design - compact, especially for their ability to lift your
material handling loads. Each swivel is installed with
roller thrust bearings for ease of movement under load. The
grease fittings are recessed, easy to maintain and refill.
(except for the midget models) Built in 4 to 1 load design
factor for safety. The Gunnebo Johnson Swivels hooks
are forged steel and bodies are precision machined. Custom
design model are available.
Replacement latch kits for both the current
models and old style hooks are listed below. |
|

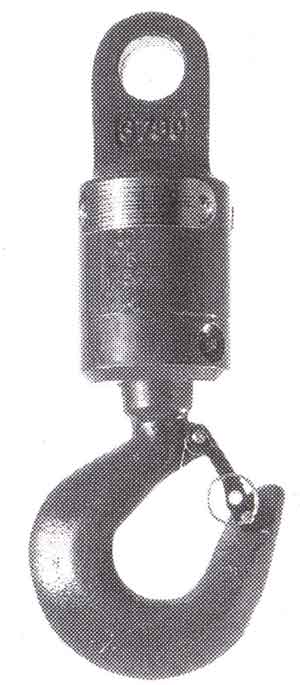

EH Eye
Swivel Sling Hook with latch kit
more
info |
|
Part Number |
Model Number |
Size |
Working
Load Limits |
Weight/lbs |
|
|
471266 |
3EHM |
3 Ton |
6,000 |
8 |
|
471268 |
3EH |
3 Ton |
6,000 |
15 |
|
471270 |
5EH |
5 Ton |
10,000 |
18 |
|
471272 |
7EH |
7 Ton |
14,000 |
18 |
|
471274 |
9EH |
9 Ton |
18,000 |
36 |
|
471276 |
12EH |
12 Ton |
24,000 |
39 |
|
471278 |
15EH |
15 Ton |
30,000 |
50 |
|
471280 |
20EH |
20 Ton |
40,000 |
74 |
|
471281 |
25EH |
25 Ton |
50,000 |
82 |
|
| |
471282 |
30EH |
30 Ton |
60,000 |
109 |
|
| |
|
|
|
|
|
|
|
|
| |
JH Jaw
Swivel Sling Hook with latch kit
more
info |
|
Part Number |
Model Number |
Size |
Working
Load Limits |
Weight/lbs |
|
|
|
|
|
|
|
|
471267 |
3JHM |
3 Ton |
6,000 |
9 |
|
471269 |
3JH |
3 Ton |
6,000 |
17 |
|
471271 |
5JH |
5 Ton |
10,000 |
20 |
|
471273 |
7JH |
7 Ton |
14,000 |
20 |
|
471275 |
9JH |
9 Ton |
18,000 |
41 |
|
471277 |
12JH |
12 Ton |
24,000 |
46 |
|
471279 |
15JH |
15 Ton |
30,000 |
56 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
Part Number |
Model Number |
Size |
Working
Load Limits |
Weight/lbs |
|
|
|
|
|
|
|
|
471430 |
3EEM |
3 Ton |
6,000 |
7 |
|
471769 |
4EE |
4 Ton |
8,000 |
16 |
|
471434 |
7EE |
7 Ton |
14,000 |
16 |
|
471438 |
12EE |
12 Ton |
24,000 |
30 |
|
471442 |
19EE |
19 Ton |
38,000 |
34 |
|
471446 |
25EE |
25 Ton |
50,000 |
44 |
|
471447 |
30EE |
30 Ton |
60,000 |
91 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
Part Number |
Model Number |
Size |
Working
Load Limits |
Weight/lbs |
|
|
|
|
|
|
|
|
471432 |
3JEM |
3 Ton |
6,000 |
8 |
|
471771 |
4JE |
4 Ton |
8,000 |
18 |
|
471436 |
7JE |
7 Ton |
14,000 |
18 |
|
471440 |
12JE |
12 Ton |
24,000 |
35 |
|
471444 |
19JE |
19 Ton |
38,000 |
41 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
| |
|
|
Part Number |
Model Number |
Size |
Working
Load Limits |
Weight/lbs |
|
|
|
|
|
|
|
|
471431 |
3EJM |
3 Ton |
6,000 |
8 |
|
471770 |
4EJ |
4 Ton |
8,000 |
21 |
|
471435 |
7EJ |
7 Ton |
14,000 |
21 |
|
471439 |
12EJ |
12 Ton |
24,000 |
32 |
|
471443 |
19EJ |
19 Ton |
38,000 |
36 |
|
| |
|
|
|
|
|
|
|
|
| |
|
|
Part Number |
Model Number |
Size |
Working
Load Limits |
Weight/lbs |
|
|
|
|
|
|
|
|
471433 |
3JJM |
3 Ton |
6,000 |
9 |
|
471772 |
4JJ |
4 Ton |
8,000 |
22 |
|
471437 |
7JJ |
7 Ton |
14,000 |
22 |
|
471441 |
12JJ |
12 Ton |
24,000 |
36 |
|
471445 |
19JJ |
19 Ton |
38,000 |
46 |
|
| |
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
Replacement
Latch Kits |
Heavy
Duty Steel J-Latch for current models |
Part
Number |
Model
Number |
Tons |
Weight |
|
471782 |
JL3-5 |
3-5 |
0.2 |
|
471783 |
JL7 |
7 |
0.3 |
|
471784 |
JL10-15 |
9-15 |
0.3 |
|
471785 |
JL20-25 |
20 |
0.4 |
|
471786 |
JL30 |
25-30 |
0.6 |
|
|
Old
Style Hook Latch Kits |
| |
Light
Duty |
Heavy
Duty |
Tons |
Part
Number |
|
Part
Number |
|
3 |
5326 |
|
3292 |
|
5-7 |
5622 |
|
3214 |
|
9 |
5503 |
|
1001 |
|
12 |
5503 |
|
3190 |
|
15 |
5533 |
|
3506 |
|
20-30 |
5551 |
|
4940 |
|
|
|
| |
|
