Caldwell Pipe Spreader Beam End Cap Fittings
Model BEF
Spreader Bean End Cap Fittings
Model BEF Beam End Cap Fittings more details
Request For Quote Model BEF more details

Build your own Spreader Beam in the field.  Endless combination of to and bottom connections. Depending on length and grade of Pipe, custom assemble Spreader Beams based on jobs changing Lift Requirements. Conforms to ASME B30.20. Designed for welded pipe yet suitable for seamless pipe.


BEF-2-1/2 uses 2-1/2" Nominal Pipe
BEF-5 uses 5" Nominal Pipe
BEF-8 uses 8" Nominal Pipe



The Caldwell Model BEF Spreader Beam End Caps are designed to use schedule 40 ERW - Electric Resistant Welded pipe yet suitable for the upgraded seamless pipe as the central structural element between the end fittings.  Engineered for Schedule 40 Welded Pipe or the heavier Scheduled 80 Pipe. The difference in Load Compression rating between Schedule 40 or Scheduled 80 Pipe is nominal. Due to the Load Compression, rating are virtually the same.  Schedule 40 Pipe is lighter in weight.  Something your riggers would appreciated. This structural material is readily available at most local steel service centers.  The BEF-2 requires a 2-1/2" nominal size, the Model BEF-5 requires a 5" nominal size, and the BEF-8 requires an 8" nominal size Schedule 40 ERW Pipe.

Other requirements are:
[] The length of pipe used for this central element must be straight within 1/4" end to end.
[] The pipe should have the ends cleanly cut square with its centerline.
[] The Schedule 40 ERW pipe should not have weld joint irregularities.
[] Each end of the schedule 40 ERW pipe must have the correct diameter holes drilled through both walls and both ends must be in line.
[] The schedule 40 ERW pipe used in this application does not need to have any pressure testing.

The retaining bolts used to secure the Model BEF 2-1/2 and BEF-5 to the Schedule 40 ERW pipe must be a Grade 5 Hex Head Cap Screw 5-8-11 with minimum length of 4-1/2" and 8" respectively. The bolt for the BEF-8 is a Grade 5 Hex Head Cap Screw 1-8 with a minimum length of 11-1/2".

Note: Complete assembly instructions are provided with each set of end fittings. One Order comes with 2 End Cap fittings.

Current Lead Time to ship the HC (High Capacity) End Cap Fittings is 2 weeks. The BEF-2-1/2 and BEF-5 are about a two day lead time to ship. Call for current lead times on the BEF-8 model.

Caldwell Beam End Fitting - Model BEF more details.

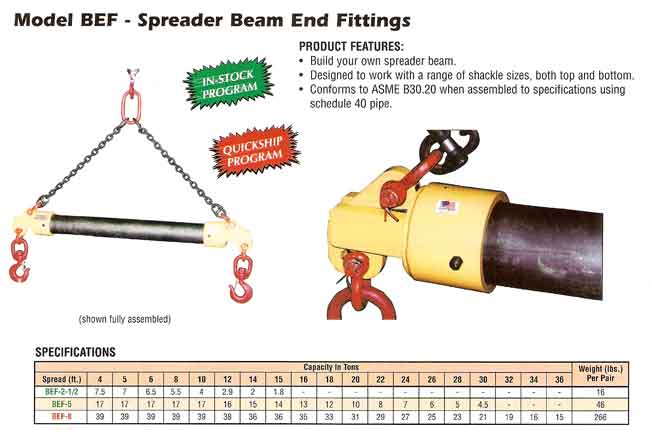

BEF Spreader Beam End Cap Fittings
BEF Spreader Beam End Cap Fittings
Note: Top and Bottom Rigging Not Included

Part
Number
More Details Pipe Size Capacity
(Tons)
Weight
Per Pair
BEF-2-1/2
2-1/2"
1.8 to 7.5
16 lbs


Model Number: BEF-2-1/2
Part Number: 65-71

Spreader Beam End Fittings (Pair)
Capacity: 1.8 to 7.5 Tons
-45 Degree Top Rigging Angle Lift
-Designed to Work with Range of Shackle Sizes
on Both Top and Bottom
Weight: 16 lbs per pair (Nomimnal)
Note: Shackles and Top Rigging not Included

Complies with ASME Standards
when Assembled to Specifications
Using A53 Grade B, Schedule 40 Pipe


BEF-5
5"
4.5 to 17
46 lbs


Model Number: BEF-5 (Pair)
Part Number: 65-72
Spreader Beam End Fittings (Pair)
Capacity: 9,000 lbs to 34,000 lbs
Varies by Pipe Length
Capacity based on 45 degree Top Rigging Angle
Weight: 46 lbs per Pair
Shackles and Top Rigging Not Included
Complies with ASME Standards when
assembled to specification using A53
Grade B, Schedule 40 Pipe


BEF-8
8"
15 to 39
266 lbs

Model Number: BEF-8 (Pair)
Part Number: 65-73
Spreader Beam End Fittings (Pair)
Capacity: 30,000 lbs to 78,000 lbs
Varies by Pipe Length
Capacity based on 45 degree Top Rigging Angle
Weight: 266 lbs per Pair
Shackles and Top Rigging Not Included
Complies with ASME Standards when
assembled to specification using A53
Grade B, Schedule 40 Pipe
Model BEF-5HC-25

Caldwell BEF HC High Capacity Spreader Beam End Fittings
Note: Top and Bottom Rigging Not Included

Caldwell BEF HC more details

Part Number
More Details
Pipe Size
Capacity
(Tons)
Weight
Per Pair
30HC-5HC-25
5"
25 tons
284 lbs
BEF-5HC-50
5"
50 tons
334 lbs
BEF-8HC-50
8"
50 tons
440 lbs
BEF-8HC-80
8"
80 tons
610 lbs
BEF-12HC-80
12"
80 tons
840 lbs
BEF-12HC-110
12"
110 tons
992 lbs
BEF-12HC-130
12"
130 tons
1,010 lbs
